Richard Rathe April 2024 (Everglades, How_To, Projects)
In 2018 I acquired a used Hobie Adventure Island sailing kayak. It came with trampolines that fit between the outriggers. As I learned the particulars of the craft it became obvious that getting out of the cockpit and sitting in/on the tramps wasn’t going to work for me. They also make it impossible to paddle the craft in any meaningful way.

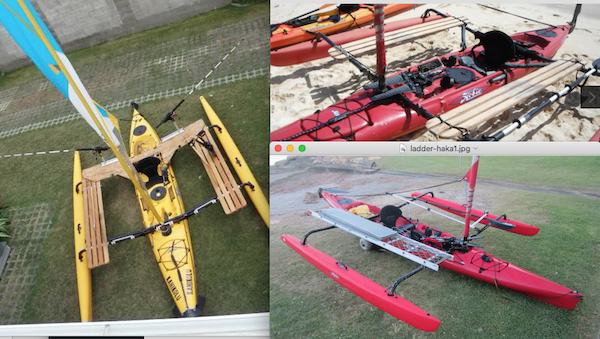

I started looking around and found many kindred spirits on the Hobie Forums. Adding homemade benches (aka “hakas“) was the obvious solution. To summarize the many materials and designs: simple wooden slats, PVC pipe, metal pipe, ladders, and something called FRP (fiber-reinforced plastic). Here is a sample of what I found…
Version 1

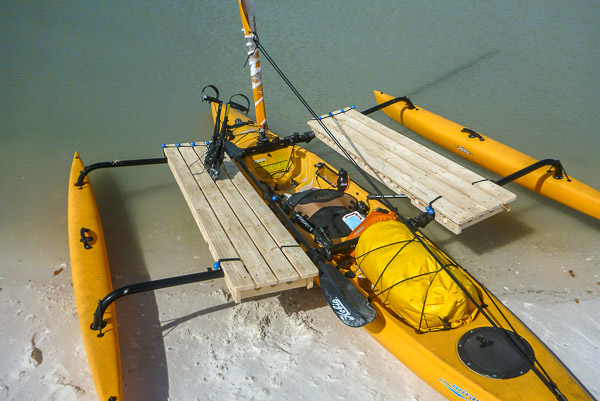

I have basic woodworking skills so I decided to use generic 1x4s from the local lumber yard (about $100). I focused on making them as strong as possible. I finished the benches and took off for the Everglades with them untested. Here is a photo of my first hakas…

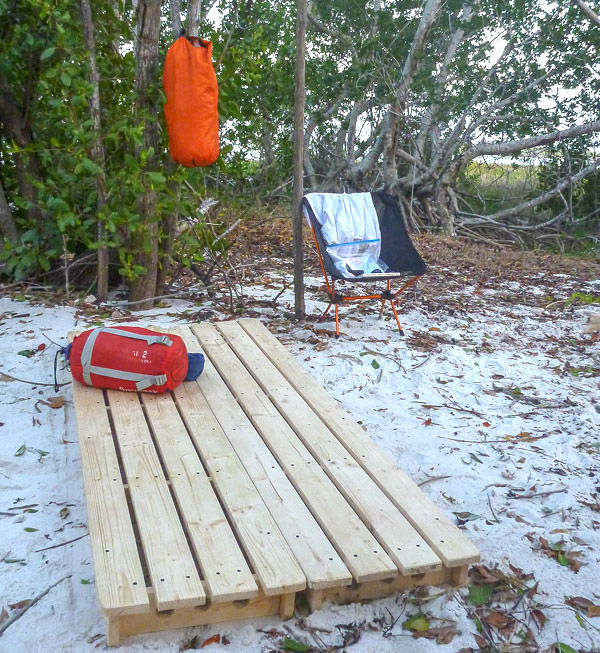

One obvious design element was putting the hakas together to make a sleeping platform. This turned out to be useful when making camp on shore. (Being four inches above the sand makes a big difference!) They were also handy for cooking and just having a clean, dry place to layout gear.
It happened to be VERY windy (15-30 knots) while I was there, so I had to limit the amount of actual sailing I did. The hakas worked well and I made it back with my sail half reefed. The major problem was the weight (about 27 pounds each). With my gear, water, and supplies I was probably at the limit of what the boat could handle. It was also obvious that version 1 was much stronger than it needed to be. Finally, I should have positioned the benches further out so there’d be room to paddle when necessary
Version 2

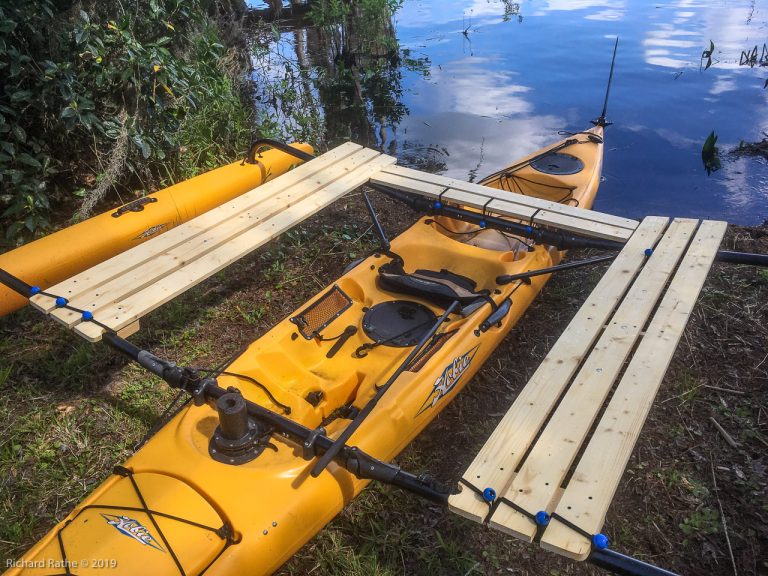

So back to the drawing board! I decided to decrease the width of the benches and nix the undercarriage. I also planned to add a “quarterdeck” behind the seat. The complete setup is shown here…

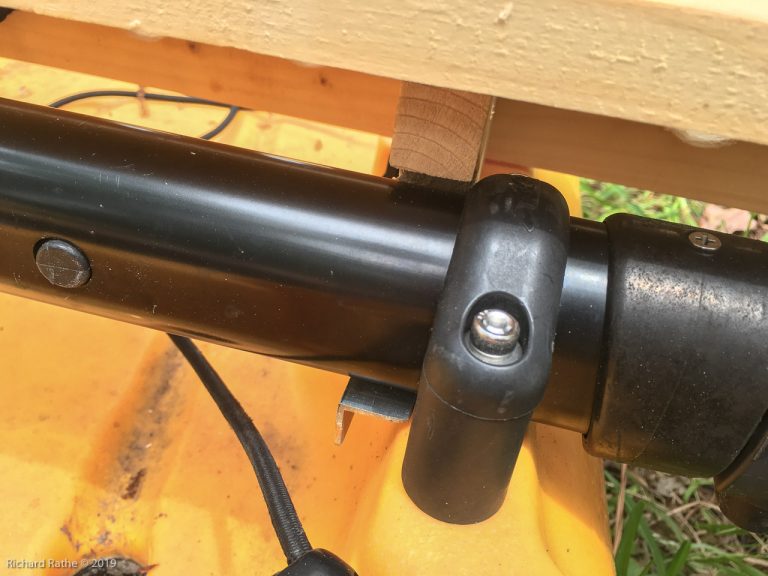

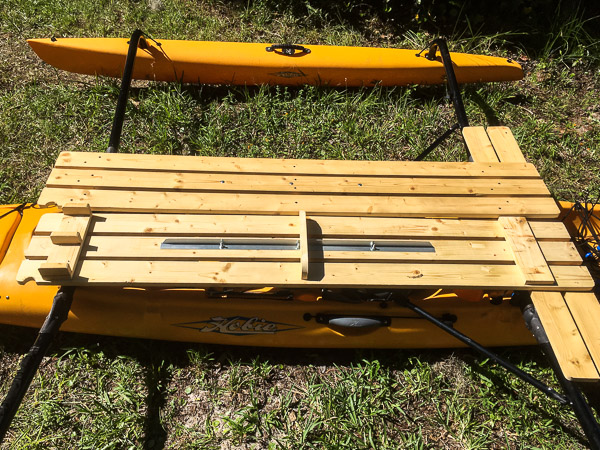

This time I made use of aluminum angle stock in two critical places: 1) I needed a strong “hook” to go under the aft crosspiece to support my weight on the opposite corner.
2) The three 3/4 inch planks are not very strong by themselves, so I ran aluminum angle down the center of each bench to help carry the load. They’re still springy but this seems to strike the right balance between strength and weight. (The small blocks seen on the left give clearance for the jam-cleats on the crossbar.)
It is so much nicer to be up out of the spray and for the first time I was really able to keep the boat trimmed in a strong wind. Notice that I’m using a half paddle. This makes paddling with the sail up much easier.
Camping
When the two hakas are brought together they make a platform exactly two by six feet. This turns out to be ideal to lay out a pad and sleeping bag. But what to do about shelter (bugs and weather)?

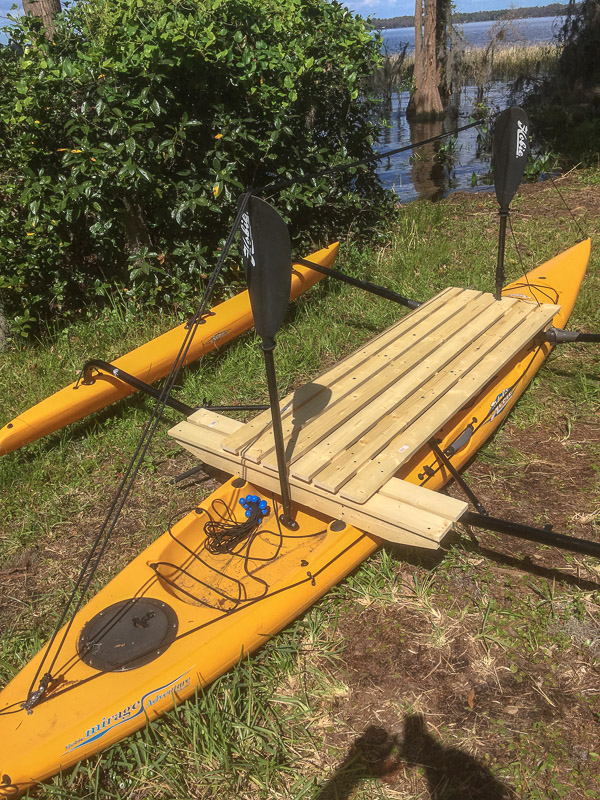

I started with half paddles for the uprights using the mast step for one and the quarterdeck to stabilize the other. Then I ran the rope that controls the sail (called the sheet) over the rear paddle and connected it to a rope from the front. This became a very stable ridge line when put under tension.

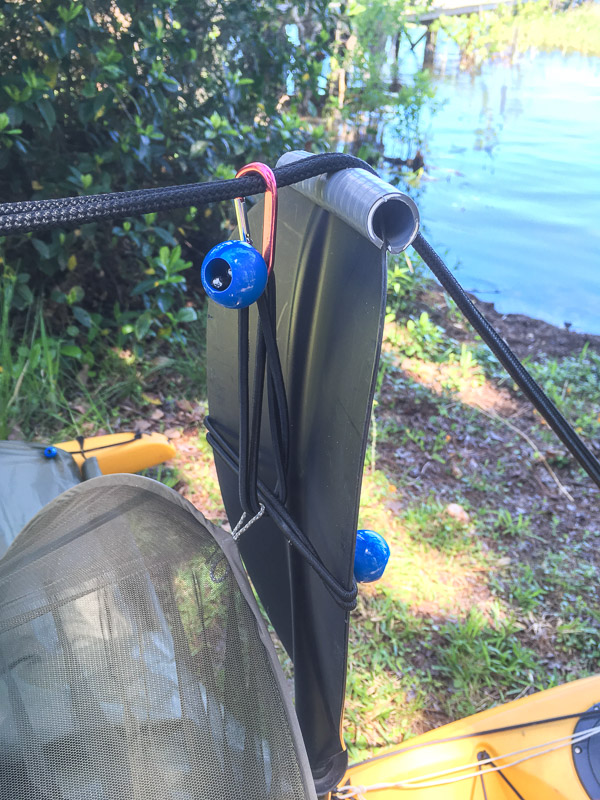

I added small loops to an inexpensive, wire-loop camping hammock and hung this from the ridge line. (Also shown here are the short pieces of flexible conduit I fashioned to keep the rope on top of the paddles.) After much experimentation I settled on the harness you see here.

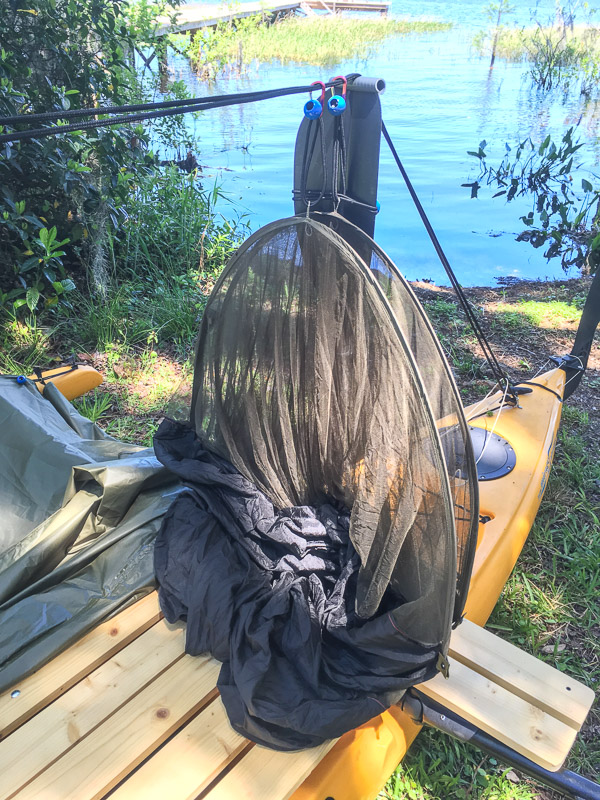

This has the added benefit of allowing the whole thing to slide to one end when not needed.

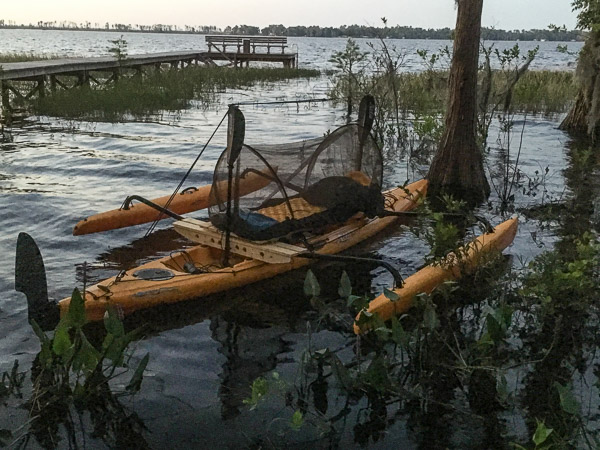

As proof of concept I tied the boat to a tree and slept on the water. 🙂
It worked remarkably well. I had enough room to stretch out and nothing got wet! It’s worth noting that the little extensions of the quarterdeck were remarkably useful for getting on and off the boat.
Rainfly

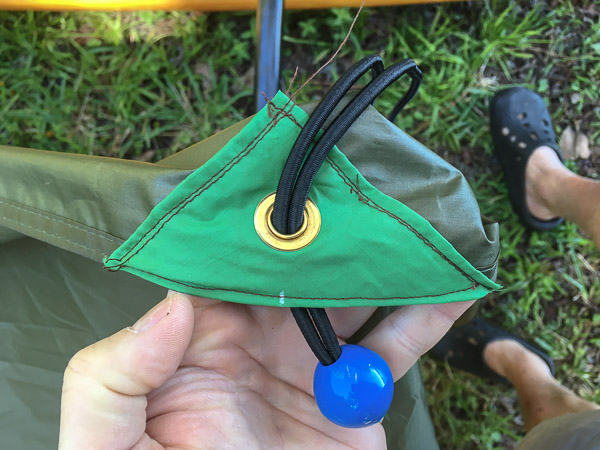

Finally, I worked on the rainfly. Starting with a generic 10×10 foot nylon tarp, I added grommets 18 inches from the ends to make it fit the outriggers.

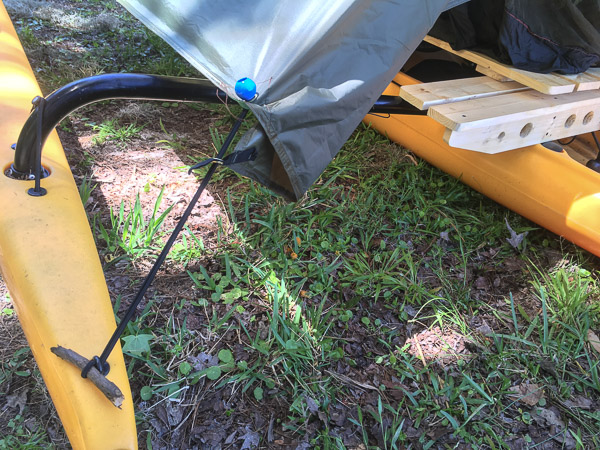

It’s worth noting here that I’m a recent convert to these shock corded toggles. I used them almost exclusively for this project. I love ’em!

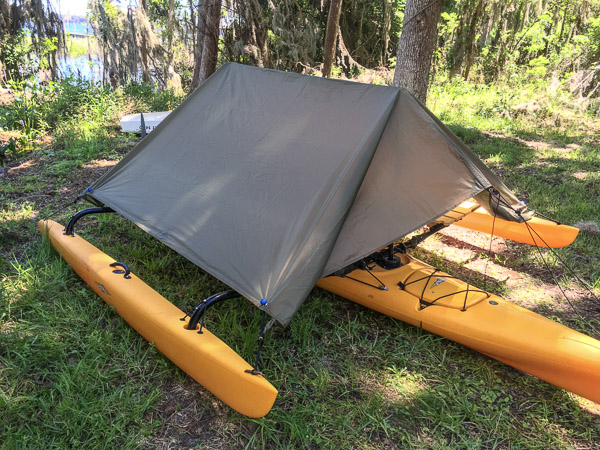

The tarp is supported by the ridge line and tied at the bow and stern. The extra length is folded under to keep it from flapping. This setup is a bit vulnerable to blowing rain on the ends but probably not an issue under normal circumstances (at anchor in a sheltered place).

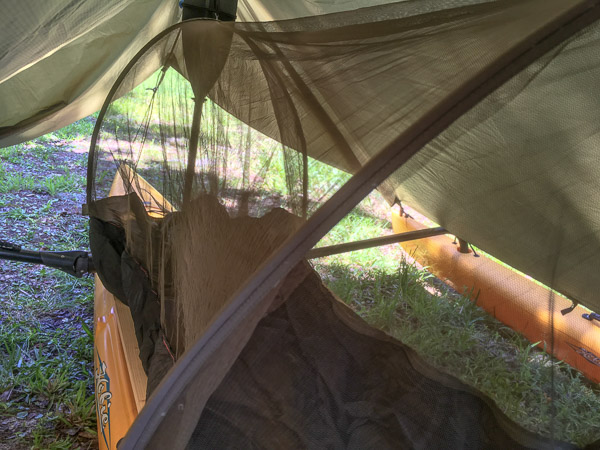

As you can see, there is plenty of head room inside. The one caveat is I might have to swim a little to setup the fly. Probably not an issue on a rainy day if the result is a high and dry place to sleep!
The strengths of this design are:
- The quarterdeck and hakas work well together and add to the sailing experience/capabilities of the boat.
- The weight is down to about half of version 1.
- Almost all the components are dual use, nothing is wasted.
- The camping setup is flexible, only use the bits that you need. If there are no bugs or rain sleep out under the stars!
- The hakas, hammock and tarp work just as well on shore. In fact all you need are the tree straps and you have a complete camping hammock with fly!
The main thing I would do differently is a build a larger quarterdeck that straddles the rear crossbar. (The cross piece underneath takes the waves head on—very annoying.) I’ll add a third plank forward of the other two. This will allow more control of the boat’s trim when I’m not all the way out on the hakas.
Version 3 (Larger Quarterdeck)

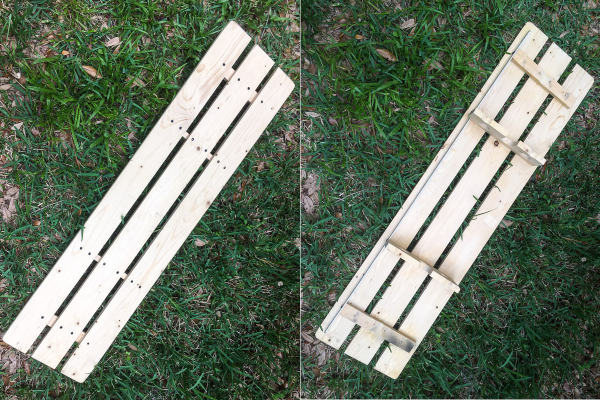

A few weeks later I bought some more 1x4s and built a new & improved quarterdeck to the specifications above.

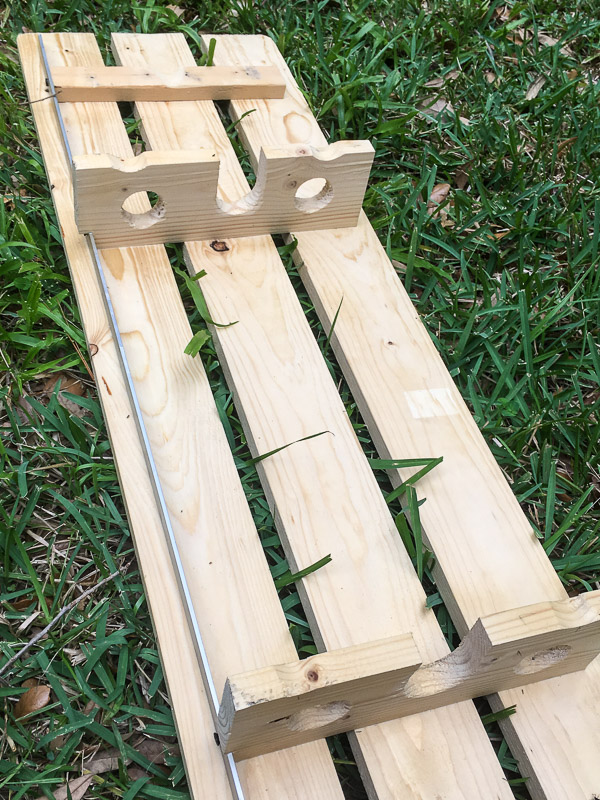

This design was much cleaner and easier to fit to the kayak. Note the 3/4″ aluminum strip (not an angle this time). I’m not sure this is necessary but it helps support weight when leaning out and back.

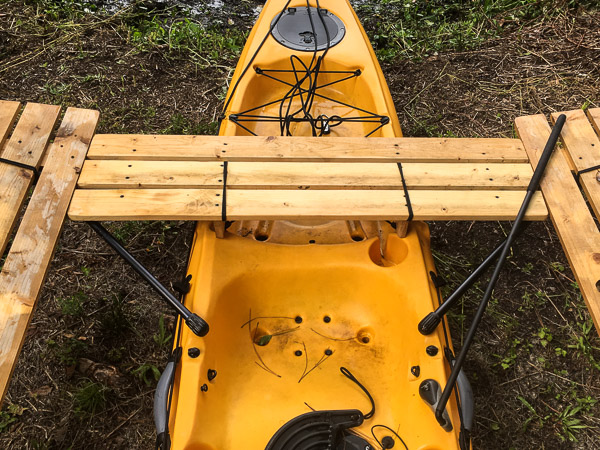

Here is the final result after a day of sailing. It fits snugly over the crossbar and the leading edge is supported by the diagonal strut. Eliminating the length-wise cross pieces makes it mostly transparent to the waves, which is a big improvement!
